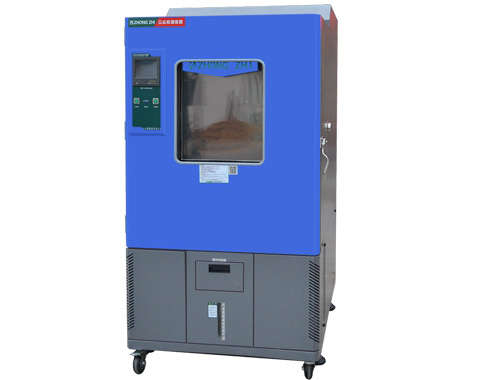

CZ-A Series Temperature Humidity Chamber

CZ-A Series Temperature Humidity Chamber

Our temperature humidity chambers deliver a heating rate of 4.0℃/min and cooling rate of 1.0℃/min. Their cooling rate can reach up to 5~10℃/min through custom options.

Both the interior and exterior of the equipment are made from SUS 304 stainless steel, while the exterior features baking finish on the surface. High density and high temperature resistant foams are used for the insulation materials.

If our standard temperature humidity chambers do not meet your requirements, we can provide you with custom-made environmental test chambers with various dimensions and functions.

Parameters
Model CZ-A-40
(A~G)		 CZ-A-80
(A~G)		 CZ-A-150
(A~G)		 CZ-A-225
(A~G)		 CZ-A-408
(A~G)		 CZ-A-608
(A~G)		 CZ-A-800
(A~G)		 CZ-A-1000
(A~G)
Workspace Dimensions-HxWxD (cm) 30x45x30 40x50x40 50x60x50 50x75x60 60x85x80 80x95x80 100x100x80 100x100x100
Exterior Dimensions-HxWxD (cm) 80x132x84 90x136x94 100x146x104 100x161x117 110x171x137 130x181x137 150x186x137 150x186x157
Temperature Range -70℃~+100℃(150℃)
Option: A:+25℃  B:0℃  C:-20℃  D:-40℃ E:-50℃  F:-60℃  G:-70℃
Humidity Range 20%~98%R.H.
Option: 10%-98%R.H / 5%~98% R.H.
Temperature Uniformity ±0.1℃;±0.1%R.H./ ±1.0℃;±3.0%R.H.
Temperature Control Tolerance ±1.0℃;±2.0%R.H./ ±0.5℃;±2.0%R.H.
Temperature Changing Speed About 4.0℃/Min; about 1.0℃/Min
Option: - 5~10℃/Min
Power 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz  (Optional)
