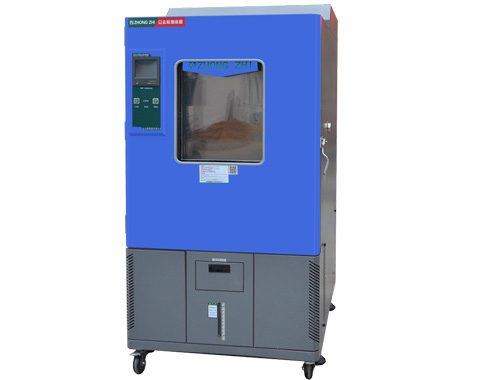

CZ-C Series Temperature Humidity Chamber

CZ-C Series Temperature Humidity Chamber

Our rapid-temperature-change type temperature humidity chambers feature a temperature changing speed of 2~15℃/min. The models with a workspace volume of greater than 408L feature a temperature changing speed of 5~15℃/min.

Both the interior and exterior of the equipment are made from SUS 304 stainless steel, while the exterior features baking finish on the surface. High density and high temperature resistant foams are used for the insulation materials.

If our standard temperature humidity chambers do not meet your requirements, we can provide you with custom-made environmental test chambers with various dimensions and functions.

Parameters

Model	CZ-C-80 (A~G)	CZ-C-150 (A~G)	CZ-C-225 (A~G)	CZ-C-408 (A~G)	CZ-C-608(A~G)	CZ-C-800 (A~G)	CZ-C-1000 (A~G)
Workspace Dimensions-HxWxD (cm)	40x50x40	50x60x50	50x75x60	60x85x80	80x95x80	100x100x80	100x100x100
Exterior Dimensions-HxWxD (cm)	90x136x94	100x146x104	100x161x117	110x171x137	130x181x137	150x186x137	150x186x157
Temperature Range	-70℃~+100℃(150℃)
	Option: A:+25℃ B:0℃ C:-20℃ D:-40℃ E:-50℃ F:-60℃ G:-70℃)
Humidity Range	20%~98%R.H.
	Option: 10%-98%R.H / 5%~98% R.H.
Temperature Uniformity	±0.1℃ ; ±0.1%R.H. / ±1.0℃; ±3.0%R.H.
Temperature Control Tolerance	±1.0℃; ±2.0%R.H. / ±0.5℃; ±2.0%R.H.
Temperature Changing Speed	About 2~15℃
	Option: - 5~10℃/Min
Power	3Φ 380VAC±10% 50/60Hz (Optional)

Features

The temperature humidity chamber is equipped with rectangular observation window with double glazing glass and anti-sweat heaters to prevent water condensate. Its workspace is lighted by high brightness PL fluorescent light.
The double-layer chamber door has excellent insulation effect.
The temperature humidity chamber uses external water supply system to supply water to the water tank. The water will be automatically recycled and reused.
It is equipped with LCD screen to show the set value, test result and test time.
