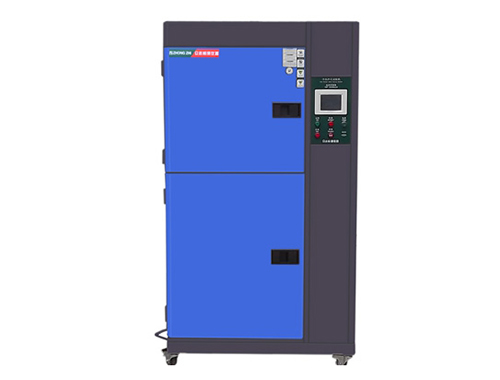

Thermal Shock Chamber (Two Zones)

The thermal shock chamber is designed with independently controlled hot and cold zones. The tested product will be transferred between two zones to simulate rapid temperature fluctuations.

The interior and exterior of the thermal shock chamber is made of SUS 304 stainless steel. The exterior features a matte finish. High density and temperature resistant foams are applied as the insulation materials of the chamber.

We can provide custom-made thermal shock chambers of various dimensions and functions to meet your special requirements.

Parameters

Model	CZ-H-42(A~C)	CZ-H-80(A~C)	CZ-H-150(A~C)	CZ-H-252(A~C)	CZ-H-450(A~C)
Workspace Dimensions-HxWxD (cm)	40×35×30	50×40×40	60×50×50	70×60×60	80×75×75
Exterior Dimensions-HxW xD (cm)	140x180x145	148X190X155	160x200X175	175x210X187	190x220x200
Temperature Range	150℃~A: -45℃; B: -55℃; C: -65℃
Temperature Range in Hot Chamber	+60℃~+150℃
Temperature Range in Cold Chamber	-10℃~-65℃
Temperature Changing Speed in Hot Chamber	RT~200℃ About 35min
Temperature Changing Speed in Cold Chamber	RT~-70℃ About 85min
Changeover Time Between Hot/Cold Chamber	≤5min ／ ≤10sec
Temperature Homogeneity	±0.5℃ ／ ±2.0℃
Power	AC380V 50HZ/60HZ 3∮ (Optional)
Approximate Weight	700Kg	900Kg	1200Kg	1400Kg	1900Kg

Features

The thermal shock chamber uses touch operation which is very convenient to use.
It features wide setting range for high temperature shock or low temperature impact. Its maximum time is up to 999H. Its maximum cycle is up to 9999 times.
It uses a binary refrigeration system for rapid cooling. This is a water cooled system.
