Salt Spray Chamber
The salt spray chamber provides an isolated corrosive environment that prevents exposure to other workplace contaminants.
The salt spray test chamber is made of fiber reinforced plastics (FRP) with a temperature resistance of -40℃~120℃. Its spray volume is 1.0~2.0ml/80cm2/h (16-hour average volume).
We also provide customized salt spray test chambers with different dimensions and functions to meet special requirements.
Parameters

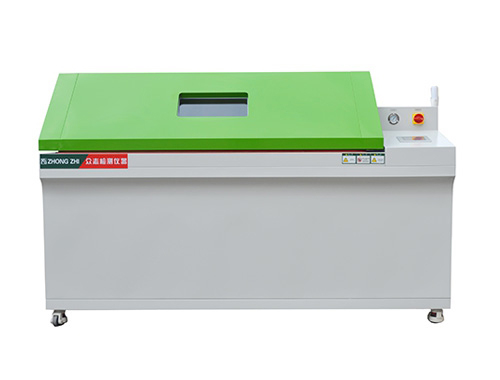

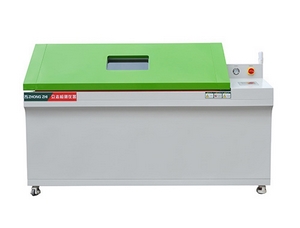

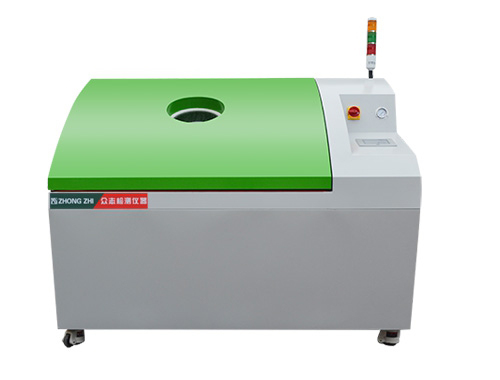

CZ-F Series Salt Spray Chamber
| Model | CZ-60F | CZ-90F | CZ-120F | CZ-160F | CZ-120F |
| Workspace Dimensions -HxWxD (cm) | 60x45x60 | 90x60x60 | 120x80x60 | 160x100x60 | 715x490x490 |
| Exterior Dimensions -HxWxD (cm) | 152x70x110 | 210x85x130 | 240x105x140 | 280x125x140 | 1315x680x800 |
| Workspace Temperature | NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃ | ||||
| Humidifier Temperature | NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃ | ||||
| Workspace Volume | 108L | 324L | 576L | 968L | 120L |
| Power (optional) | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ10A |
| Model | CZ-450F | CZ-1000F | CZ-1300F | CZ-2000F |
| Workspace Dimensions -HxWxD (cm) | 1010x640x1140 | 1300x980x1320 | 1300x980x1528 | 2160x980x1320 |
| Exterior Dimensions -HxWxD (cm) | 1660x840x1510 | 2025x1145x1720 | 2025x1156x1906 | 2885x1145x1720 |
| Workspace Temperature | NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃ | |||
| Humidifier Temperature | NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃ | |||
| Workspace Volume | 450L | 1000L | 1300L | 2000L |
| Power (optional) | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |

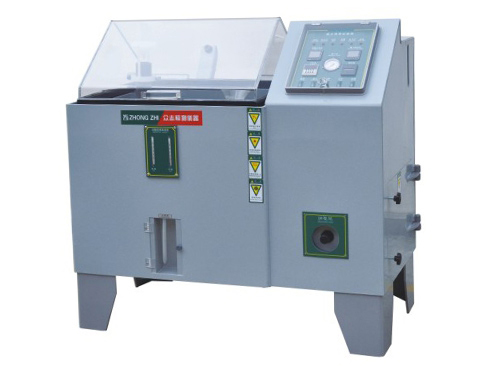

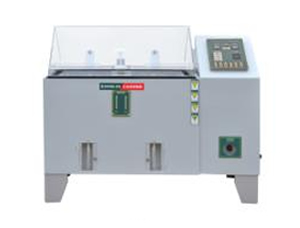

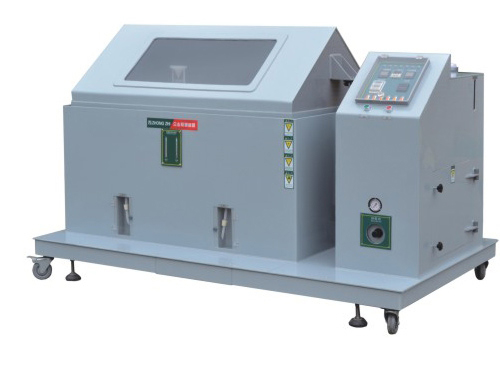

CZ-A Series Corrosion Test Chamber
| Model | CZ-60A/CZ-60A--1 | CZ-90A/CZ-90A-1 | CZ-120A/CZ-120A-1 | CZ-160A/CZ-160A-1 | CZ-200A/CZ-200A-1 |
| Workspace Dimensions- H x W x D (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x120x60 |
| Exterior Dimensions- H x W x D (cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x130x140 | 270x150x150 |
| Workspace Temperature | NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃ | ||||
| Humidifier Temperature | NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃ | ||||
| Workspace Volume | 108L | 270L | 480L | 800L | 1440L |
| Power (optional) | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |

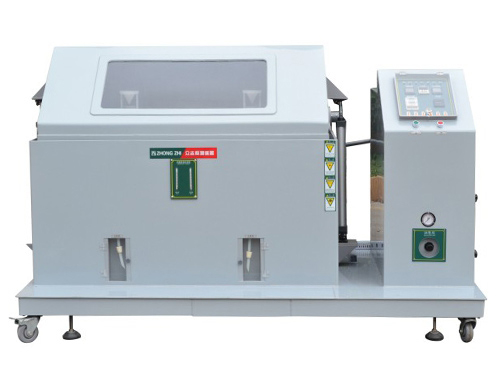

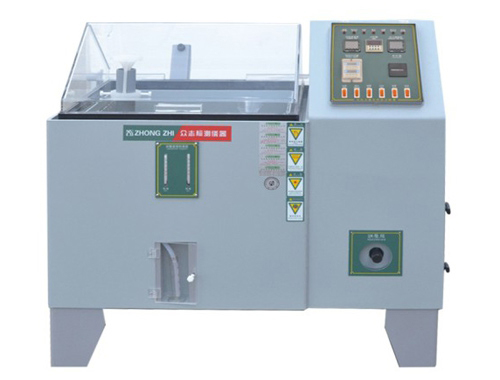

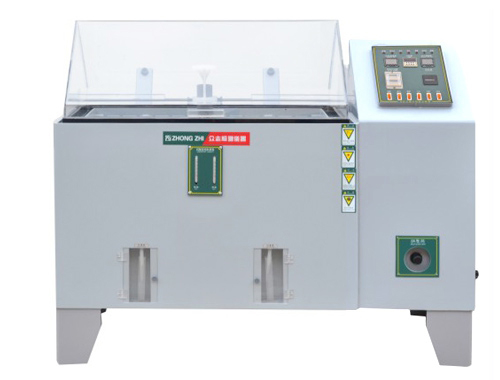

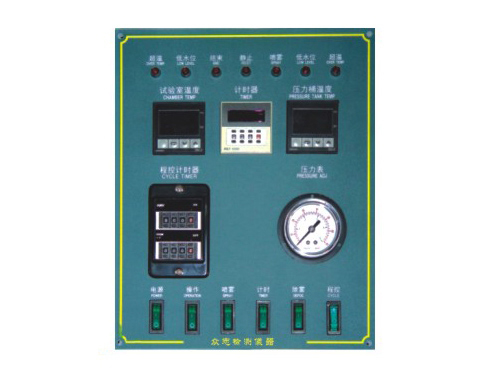

CZ-B Series Salt Spray Chamber
| Model | CZ-60B | CZ-90B | CZ-120B | CZ-160B | CZ-200B |
| Workspace Dimensions- H x W x D (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x120x60 |
| Exterior Dimensions- H x W x D (cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x130x140 | 270x150x150 |
| Workspace Temperature | NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃ | ||||
| Humidifier Temperature | NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃ | ||||
| Workspace Volume | 108L | 270L | 480L | 800L | 1440L |
| Power (optional) | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |

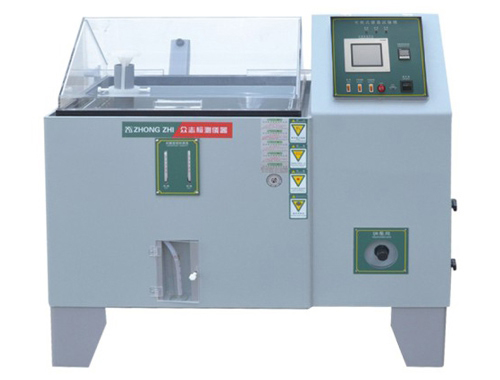

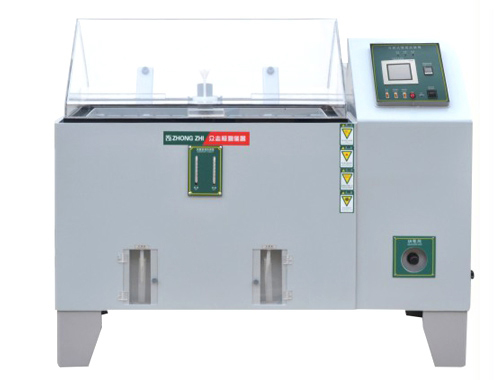

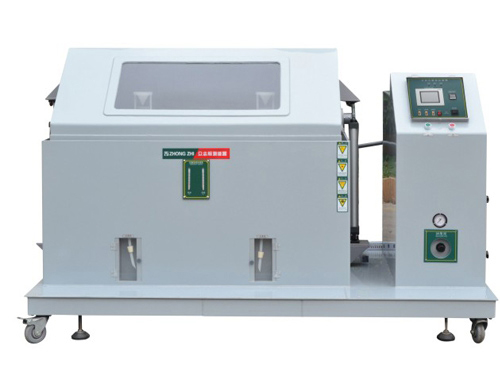

CZ-C Series Salt Spray Chamber
| Model | CZ-60C | CZ-90C | CZ-120C | CZ-160C | CZ-200C |
| Workspace Dimensions- H x W x D (cm) | 60x45x40 | 90x60x50 | 120x80x50 | 160x100x50 | 200x120x60 |
| Exterior Dimensions- H x W x D (cm) | 107x60x118 | 141x88x128 | 190x110x140 | 230x130x140 | 270x150x150 |
| Workspace Temperature | NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃ | ||||
| Humidifier Temperature | NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃ | ||||
| Workspace Volume | 108L | 270L | 480L | 800L | 1440L |
| Power (optional) | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ20A | AC220V1Φ20A | AC220V1Φ30A |
