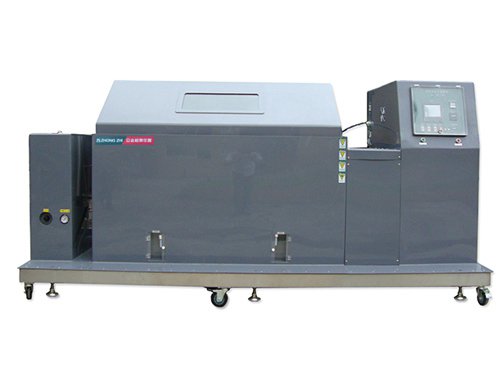

Cyclic Corrosion Test (CCT) Chamber

The cyclic corrosion test chamber integrates the functions of a temperature humidity chamber and a salt spray chamber to simulate different climates, including salt fog, dry, humid, constant temperature and low temperature environments. These climates can be used in any sequence or combination to determine product safety and quality.

We provide custom-made cyclic corrosion test chambers in different dimensions and functions according to specific customer requirements.

Parameters

Model	CZ-90D	CZ-120D	CZ-160D	CZ-200D
Workspace Dimensions-H x W x D (cm)	90x60x50	120x80x50	160x100x50	200x120x60
Exterior Dimensions-H x W x D (cm)	141x88x128	190x110x140	230x130x140	270x150x150
Temperature Range	-20℃, -10℃, RT~80℃
Humidity Range	20%~98%
Temperature Uniformity	±0.1℃；±0.1%R.H./±1.0℃；±3.0%R.H.
Temperature Control Tolerance	±1.0℃；±2.0%R.H./±0.5℃；±2.0%R.H.
Workspace Temperature	NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃
Humidifier Temperature	NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃
Power (optional)	AC220V1Φ15A	AC220V1Φ20A	AC220V1Φ20A	AC220V1Φ30A

Features

The cyclic corrosion test chamber is equipped with LCD touch screen and temperature and humidity controller. It can total record the temperature curves and humidity curves.
It can control the temperature and humidity in the chamber accurately.
Testing period for each step can be pre-set from 0 to 999h 59min.
Cycles are able to be pre-set from 1 to 999 times for each step or all steps.
The power-off memory function can save the test state in the case of abrupt power failure or the need to cut off the power during the test, and the test will resume when the power is on again.
It can connect computer via RS232 interface.
