AGREE Chamber

AGREE Chamber

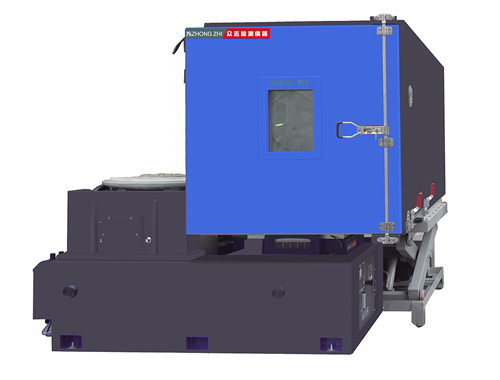

AGREE chambers are designed to provide flexibility in adapting to many different environmental testing requirements. An AGREE chamber can be used as a standalone temperature chamber or humidity chamber as well as a vibration chamber.

The AGREE chamber features a heating rate of 4.0℃/min and cooling rate of 1.0℃/min. Its cooling rate can reach up to 5~10℃/min through custom configuration. Various vibration tables are optional.

Both the interior and exterior of the AGREE chamber are made from SUS 304 stainless steel. The exterior features a matte finish. High density and high temperature resistant polyurethane is used for the insulation materials.

If our standard AGREE chambers do not meet your needs, we can manufacture custom-made AGREE chambers of various dimensions and functions according to your requirements.

Parameters

Model	CZ-J-408(A~G)	CZ-J-608(A~G)	CZ-J-800(A~G)	CZ-J-1000(A~G)
Workspace Dimensions-H x W x D (cm)	60x85x80	80x95x80	100x100x80	100x100x100
Exterior Dimensions-H x W x D (cm)	110x171x137	130x181x137	150x186x137	150x186x157
Temperature Range	-70℃~ +100℃(150℃)
	Option: A:0℃; B:-20℃; C:-20℃; D:-40℃; E:-50℃; F:-60℃; G:-70℃
Humidity Range	20%~98% R.H.
	Option: 10%-98%R.H/5%~98%
Temperature Uniformity	±0.1℃: ±0.1%R.H./±1.0℃ ; ±3.0%R.H.
Temperature Control Tolerance	±1.0℃ ; ±2.0%R.H./±0.5℃ ; ±2.0%R.H.
Temperature Changing Speed	About: 4.0℃/Min；About: 1.0℃/Min
	Option: -5~10℃/Min
Power	1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz (Optional)

Features

The AGREE chamber is compact in structure. It adopts a combined test chamber and cooling system.
It is equipped with an LCD touch screen which is easy to operate.
The temperature and humidity is automatically controlled. It has an R232 interface.
