Walk-In Salt Spray Chamber

The walk-in salt spray test chambers provide solutions for testing large components, assemblies and finished products for many industries. It features continuous salt spray and its spray volume is 1.0~2.0ml/80cm2/h (16-hour average volume). Its air pressures should be kept at 1.00±0.01kgf/cm2.

If our standard walk-in salt spray test chambers don't meet your needs, we will manufacture customized walk-in salt spray chambers in a variety of dimensions and functions to meet unique customer requirements.

Parameters

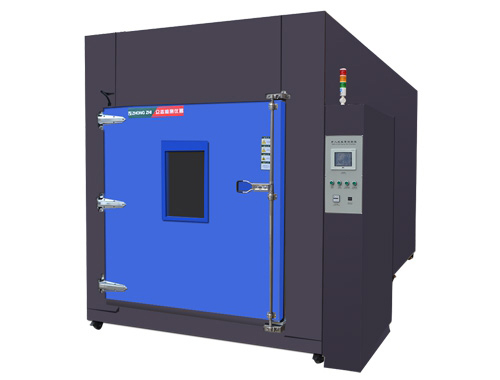

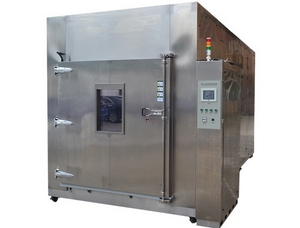

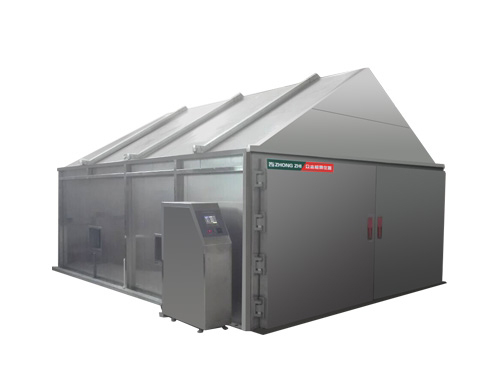

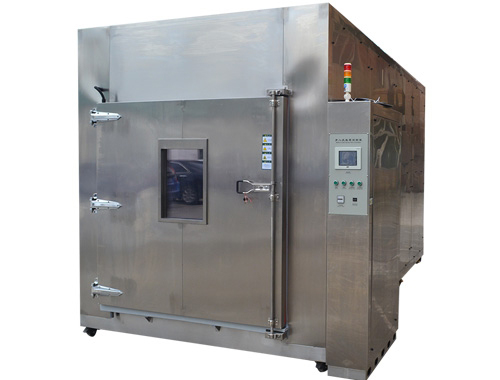

CZ-A Series Walk-In Salt Spray Chamber

  • Walk-In Salt Spray Test Chamber
  • Walk-In Salt Spray Test Chamber
  • Walk-In Salt Spray Test Chamber
Model CZ-8000C CZ-12000C CZ-16000C
Inner Capacity 8 Cubic Meter 12 Cubic Meter 16 Cubic Meter
Workshop Dimension (m) 2x2x2 3x2x2 4x2x2
Lab Temperature Saline testing method(NSS ACSS)35℃±1℃/Corrosion-resistant testing method(CASS)50℃±1℃
Pressure PotTemperature Saline testing method(NSS ACSS)47℃±1℃/Corrosion-resistant testing method(CASS)63℃±1℃
Saline Concentration Sodium chloride solution with 5% concentration or 0.26g copper chlorride is added to eachliter of sodium chloride solution with 5% concentration
Compressed Air Pressure 1.00±0.01kgf/cm²
Spray Volume 1.0~2.0ml/80cm²/h(at least collecting 16 hours and take the average value)
Relative Humidity In The Lab Above 85%
PH Value 6.5~7.2 3.0~3.2
Spray Method Continuous spraying
Power AC380V ∮3 Phases 28.6KW AC380V ∮3 Phases 30.6KW AC380V ∮3 Phases 32.6KW

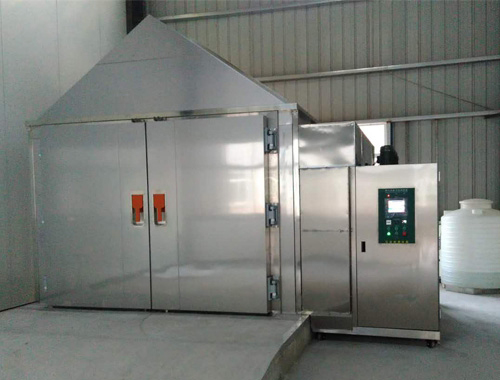

CZ-D Series Walk-In Salt Spray Chamber

  • Walk-In Salt Spray Chamber
Model CZ-12600D CZ15000D
Workspace Dimensions-
H x W x D (cm)
2800x2500x1800 3000x2500x2000
Exterior Dimensions-
H x W x D (cm)
About 3000x2500x3100 About 3200x2700x3300
Temperature Range 10℃-70℃ RT-70℃
Workspace Temperature NSS ACSS: 35℃±1℃/ CASS: 50℃±1℃
Humidifier Temperature NSS ACSS: 47℃±1℃/ CASS: 63℃±1℃
Workspace Volume 108L 270L480L800L1440L
Power (optional) AC380V AC380V
