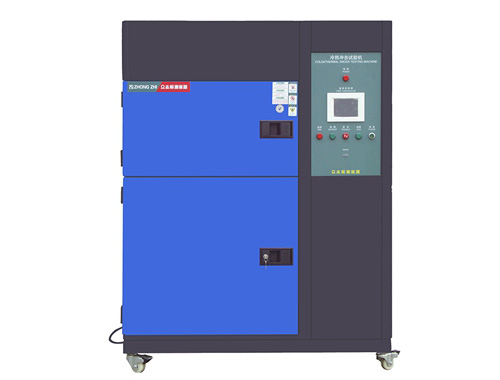

Thermal Shock Chamber (Three Zones)

Thermal Shock Chamber (Three Zones)

The thermal shock environmental chamber is designed with three independently controlled zones: hot zone, cold zone and test zone. The tested product will be put into the test zone and the hot and cold air will be transferred to the test zone to simulate rapid changes in temperature.

Both the interior and exterior of the thermal shock chamber are made of SUS 304 stainless steel. The exterior features baking finish. The insulation materials are aluminum silicate fiber cotton or PU Styrofoam which both provide high density and high temperature resistant performance.

Our thermal shock chambers can be customized with special dimensions and functions to meet your individual needs.

Parameters
Model CZ-I-42(A~C) CZ-I-80(A~C) CZ-I-150(A~C) CZ-I-252(A~C) CZ-I-450(A~C)
Workspace Dimensions WxHxD(cm) 40×35×30 50×40×40 60×50×50 70×60×60 80×75×75
Exterior Dimensions WxHxD(cm) 140x180x145 148X190X155 160x200X175 175x210X187 190x220x200
Temperature Range 150℃~A: -45℃; B: -55℃; C: -65℃
Temperature Range in Hot Chamber +60℃~+150℃
Temperature Range in Cold Chamber -10℃~-65℃
Temperature Changing Speed in Hot Chamber RT~200℃ About 35min
Temperature Changing Speed in Cold Chamber RT~-70℃ About 85min
Changeover Time Between Hot/Cold Chamber ≤5min / ≤5sec
Temperature Homogeneity ±0.5℃ / ±2.5℃
Power AC380V 50HZ/60HZ 3∮ (Optional)
Approximate Weight 700Kg 900Kg 1200Kg 1400Kg 1900Kg
Features
  • The thermal shock chamber uses touch operation which is very convenient to use.
  • It features wide setting range for high temperature shock or low temperature impact. The maximum time is up to 999H. The maximum cycle is up to 9999 times.
  • It uses binary refrigeration systems which feature rapid cooling rates. The cooling method is water-cooled.
Tags
Testing equipment Climatic chamber Climatic chamber Environmental chambers Humidity chamber suppliers China test equipment Temperature & humidity test chamber
