CZ8000 Series Universal Testing Machine
These universal testing machines provide a wide capacity range of range of 100N to 50KN. Their force resolution is 1/500,000 and force accuracy is ±0.25%. Their travel resolution is 0.001mm.
We also provide custom-made universal testing machines in a variety of dimensions and functions to meet your special requirements.
Parameters

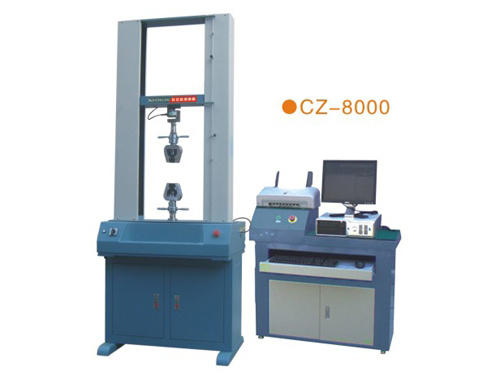

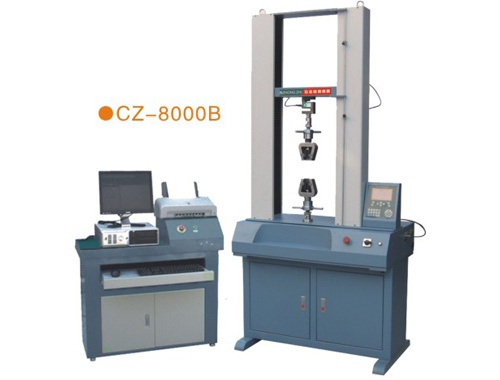

| Model | CZ-8000 | CZ-8000B |
| Capacity | 100N,200N,500N,1kN,2kN,5kN,10kN,20kN,50kN (Optional) | 100N,200N,500N,1KN,2KN,5KN,10KN (Optional) |
| Measurement Unit | N,kN,kgf,Lbf,MPa,Lbf/In2,kgf/mm2 | |
| Force Resolution | 1/500,000 | |
| Force Accuracy | ±0.25% | |
| Stroke | 800mm,1000mm (Optional) | |
| Effective Width | 400mm,500mm (Optional) | |
| Speed | 0.001~500mm/min | 0.001~500mm/min or 0.00 |
| Speed Accuracy | ±0.5% | |
| Travel Resolution | 0.001mm | |
| Motor Style | AC Servo Motor | |
| Dimensions (WxDxH) (mm) | 800x700x2400 | 900x600x2200 |
| Weight | 195kg | 150kg |
| Power | AC220 10A (optional) | |
