CZ8002 Series Universal Testing Machine
The universal testing machines provide a wide capacity range of 50N to 5KN. Their force resolution is 1/500,000 and force accuracy is ±0.25%. Their speed is 0.001~500mm/min and speed accuracy is ±0.5%.
The CZ-8002 universal testing machine is used in site testing and is requires no computer for operation.

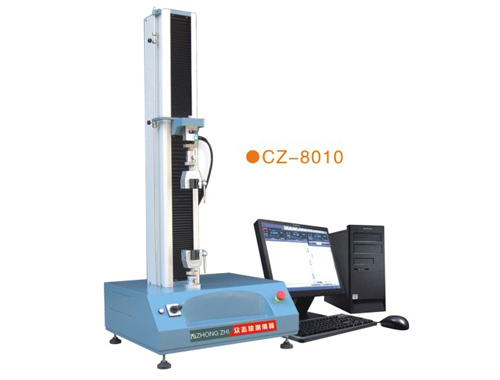

The CZ-8010 universal testing machine is designed for precision testing and is controlled via a computer, making it ideal for laboratory use.
The CZ-8010A universal testing machine is suitable for cycle tests and retention tests.
Our universal testing machines can be customized according to your needed dimensions and functions to meet your unique requirements.
| Model | CZ-8002 | CZ-8010 | CZ-8010A |
| Capacity | 50N,100N,200N,500N,1KN,2KN,5KN | ||
| Measurement Unit | N,kN,kgf,Lbf,MPa,Lbf/In2,kgf/mm2 | ||
| Force Resolution | 1/500,000 | ||
| Force Accuracy | ±0.25% | ||
| Stroke | 650,1000 (Optional) | ||
| Effective Width | 130mm | ||
| Speed | 0.001~500mm/min | ||
| Speed Accuracy | ±0.5% | ||
| Travel Resolution | 0.001mm | ||
| Motor Style | AC Servo Motor | ||
| Dimensions (WxDxH) (mm) | 500x600x1200mm (Stroke: 650mm) or 500x600x1550mm (Stroke: 1000mm) | ||
| Weight | 95kg | ||
| Power | AC220 10A (optional) | ||
